Fire damper sleeve construction drawing
Tags
#Fire damper sleeve construction#Fire damper sleeve#Fire damper detail drawing#damper#damper drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

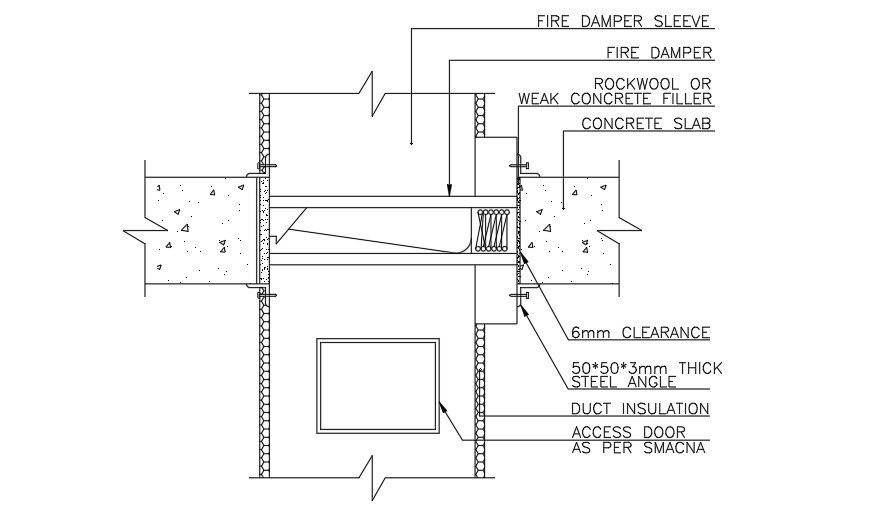

Fire damper sleeve construction drawing is given in this AutoCAD file. 6mm clearance is provided. Fire damper, fire damper sleeve, concrete slab, rock wool, duct insulation, and access doors are mentioned. For more details download the AutoCAD drawing file from our cadbull website.
Uploaded by:
Meera
