An elevation view of the 2232x3032mm spade plate
Tags
#An elevation view of the 2232x3032mm spade plate#2232x3032mm spade plate#duct channel#duct opening#spade plate
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

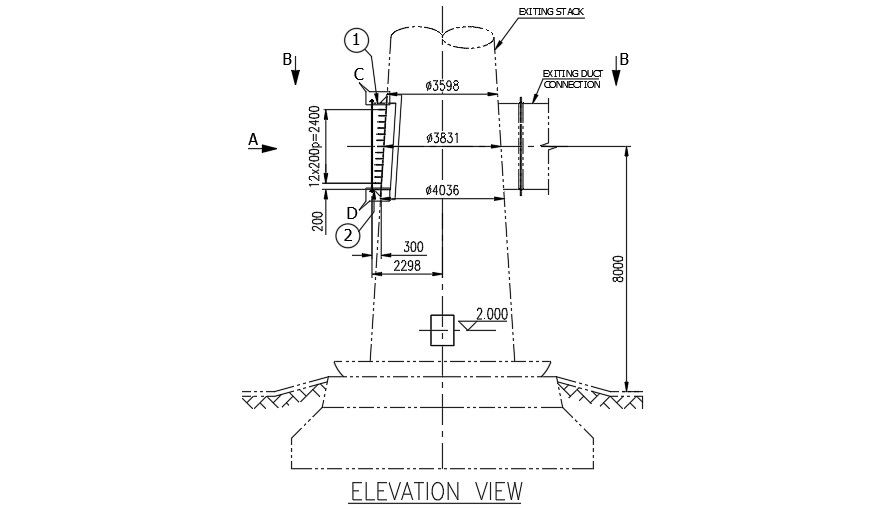

An elevation view of the 2232x3032mm spade plate is given in this CAD file. The total height of the spade plate is 8000mm. Existing duct connection is provided at the top. For more details download the AutoCAD drawing file from our cadbull website.
