A typical detailed view of the 2300x3100mm spade plate
Description

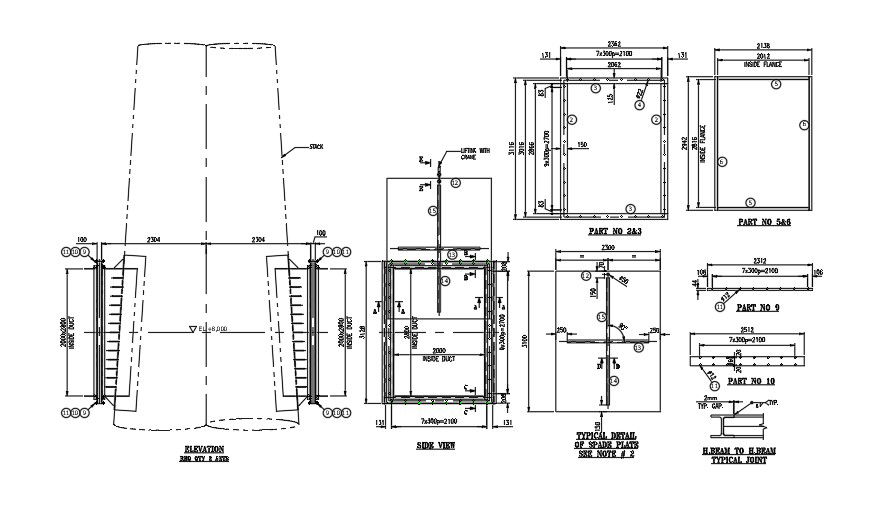

A typical detailed view of the 2300x3100mm spade plate is given in this CAD file. The total height of the spade plate is 9500mm. Existing duct connection is provided at the top. For more details download the AutoCAD drawing file from our cadbull website.
