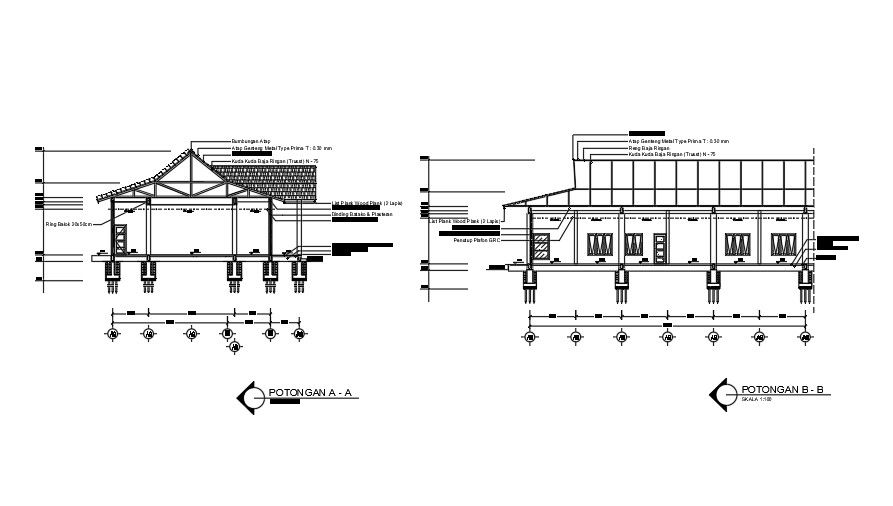

The right and front section view of the 36x11m ware house building
Description
The right and front section view of the 36x11m ware house building is given in this CAD file. The front and left side of the sections are given. The total height of the warehouse building is 7.20m. A hall, terrace, counter, development economic space, preparation room, cleanliness room, room, and ware houses are available. For more details download the CAD file from our cadbull website.
File Type:
DWG
File Size:
1.3 MB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
