Deflector unit frame vertical plane CAD drawing
Description

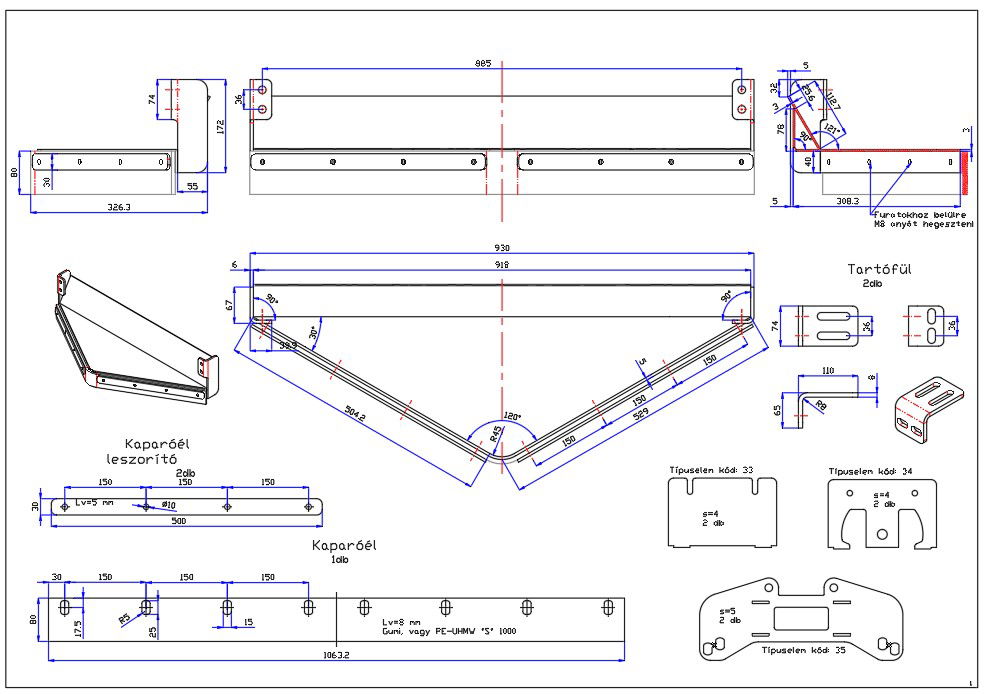

Deflector unit frame vertical plane CAD drawing is given in this file. Hot dip galvanized design is mentioned in this drawing model. Deflector unit is fixed. Each part is given with the names and structure can be fixed to the vertical plane. Internal strap cleaner is given with detail. For more details download the CAD file from our cadbull website.
