2450x1500mm septic tank plan with section view
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

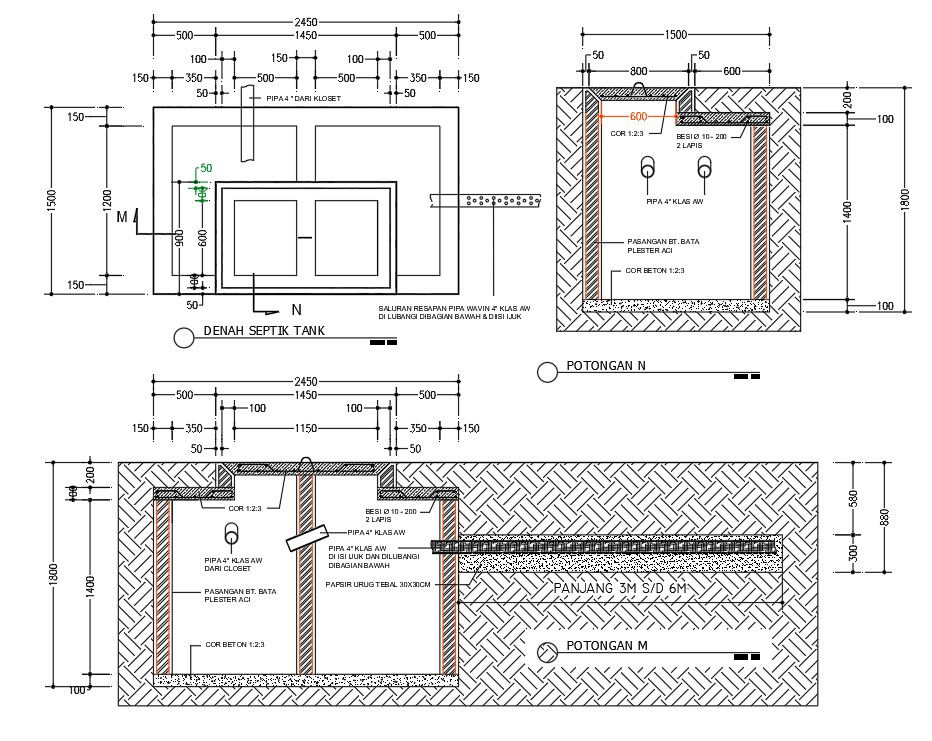

2450x1500mm septic tank plan with section view is given in this AutoCAD drawing. The total height of the septic tank is 1800mm. 4” diameter pipe is provided for the outlet. 1:2:3 concrete is provide. Pipe 4" class aw in contents of fiber and installed in the below section of the tank. For more details download the CAD file from our cadbull website.
