Detail Drawing of Walls Constructive Design 300mm CAD DWG File (70)

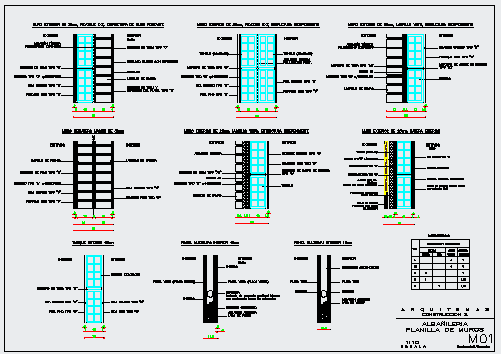

 The Detail Drawing of Walls Constructive Design shows precise wall sections with 300?mm thickness, block types, mortar joints, reinforcement placement, insulation, and construction annotations. This AutoCAD?DWG file provides architects, civil engineers, interior designers, and builders with accurate dimensioned details for multiple wall types, including solid, cavity, partition, and reinforced walls. Each wall section includes clear labels for layers, wall ties, plaster thickness, floor-to-wall connections, and material specifications.
