66x42m heritage building front and back section drawing is given in this CAD file
Description

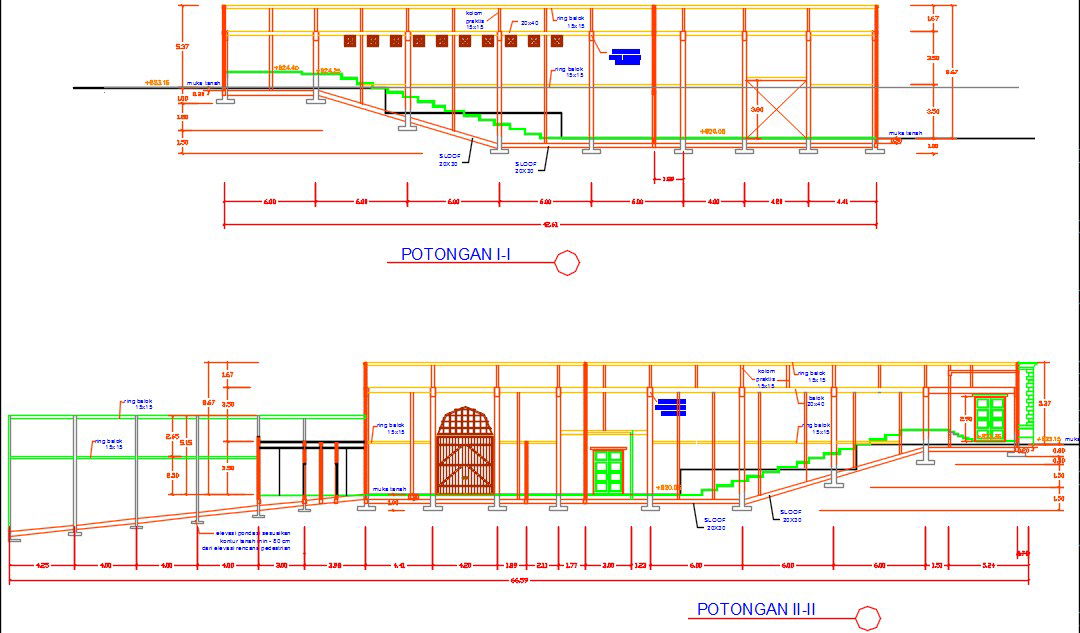

66x42m heritage building front and back section drawing is given in this CAD file. The total height of the building is 8.67m. Amphitheatre, stage, back stage workshop, back ground curtain, male toilet, female toilet, and other details are mentioned. The column head for roof truss mount, practical column, ring beam, beam For more details download the AutoCAD drawing file from our Cadbull website.
File Type:
DWG
File Size:
4.5 MB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
