80x100cm footing cum column vertical section drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

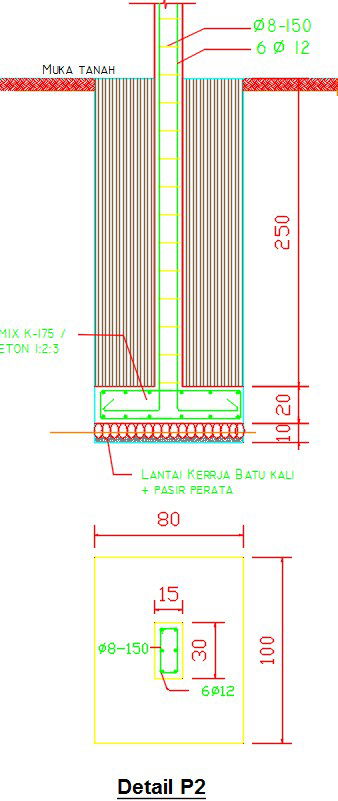

80x100cm footing cum column vertical section drawing is given in this file. The total height of the column from ground level is 250cm. The dimension of the column is 15x30cm. Reinforcement details are mentioned in this drawing. At the bottom, river stone and sand levels are provided. For more details download the AutoCAD drawing file from our Cadbull website.
Tags
#80x100cm footing cum column vertical section#Chess pizza game stadium plan#chess tournament place#chess game area#chess game building#chess game stadium
Uploaded by:
Meera
