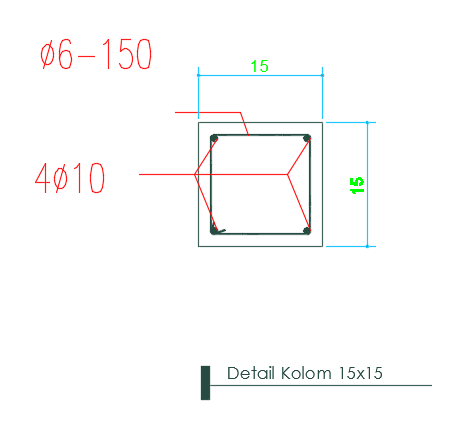

15x15cm residential building column cross section drawing


Description

15x15cm residential building column cross section drawing is given in this file. This is provided to the 7x13m residential building. 6mm diameters of the 2 bars are provided at the top. 6mm diameters of the 2 numbers of bars are provided at the bottom. For more details download the CAD drawing file from our website.




File Type: DWG File ID: 192378
