215m length of the septic tank section CAD drawing
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

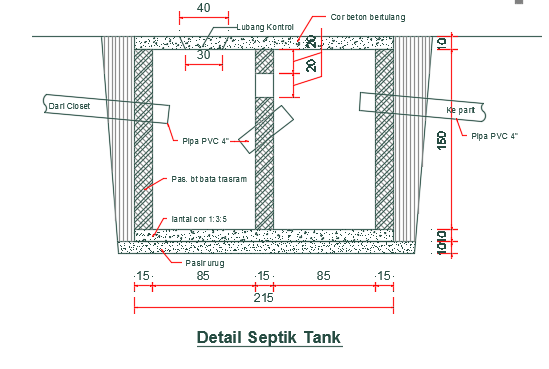

215m length of the septic tank section CAD drawing is given in this file. The height of the septic tank is 180cm. In the section drawing, PCC 1:3:5, 4” PVC pipes, plain concrete, and other details are mentioned. The left side pipe is provided form the water closet. The right side pipe is provided for the outlet. For more details download the CAD drawing file from our website.
File Type:
DWG
File Size:
2.3 MB
Category::
Structure
Sub Category::
Section Plan CAD Blocks & DWG Drawing Models
type:
Gold
Tags
#215m length of the septic tank section CAD drawing#septic tank#septic tank plan#septic tank section
