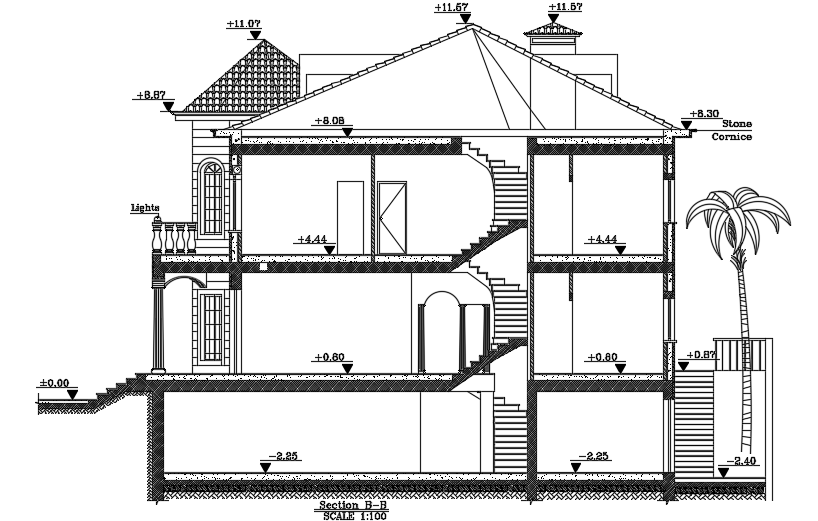

The left side section view of the 16x16m luxury villa building is given in this file. This is G+1 building with basement floor. In this ground floor, veranda, breakfast dining, living room, kitchen, dining area, store room & laundry, common toilet, TV room, and master bedroom with the attached toilets are available. In the basement floor, living room, kitchen, boiler room, dressing room, and common bathrooms are available. In the first floor, living room, guest room with the attached toilet & bathtub, master bedroom with toilet & walk in closet, office room, kid’s room with the attached toilet & bathtub, and terrace are available. For more details download the AutoCAD drawing file from our website.
