42’x45’ house building foundation structures detail drawing


Description

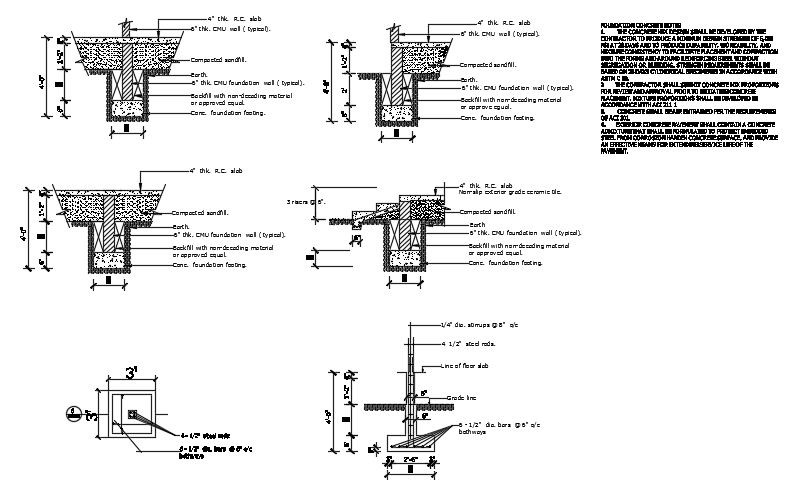

42’x45’ house building foundation structures detail drawing is given in this file. The length and breadth of the foundation are 3’ and 3’ respectively. In the column, 2 bars are provided at the top, and 2 bars are provided at the bottom. A section view of the foundation is given. Compacted sand fill, 6” thickness CMU wall, concrete foundation footing, 4” thickness of the RC slab, back fill with nondecading material are mentioned. For more details download the AutoCAD DWG drawing file from our cadbull website.




File Type: DWG File ID: 192599
