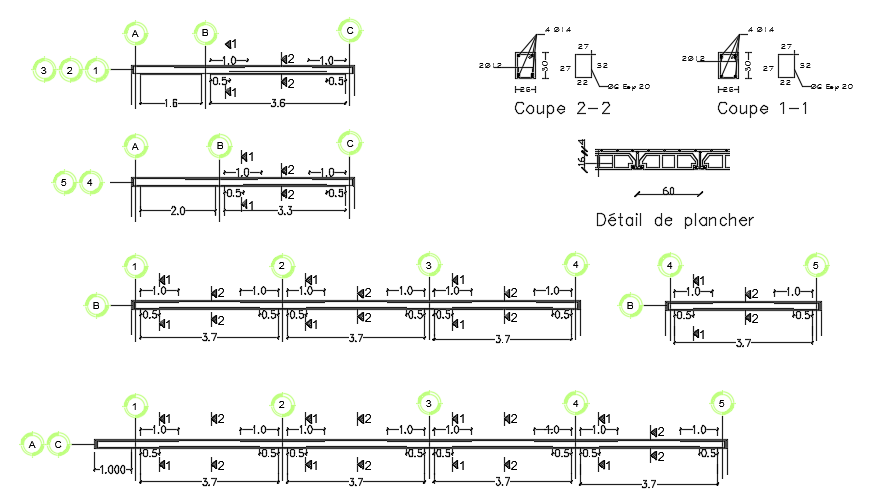

6x16m house building beam cross section and longitudinal section drawing


Description

6x16m house building beam cross section and longitudinal section drawing is given in this file. The cross section of the beam is 25x30cm. In this beam, two bars are provided at the top, and two bars are provided at the bottom. For more details download the AutoCAD DWG drawing file from our cadbull website.




File Type: DWG File ID: 192624

Uploaded by:


Meera
India
