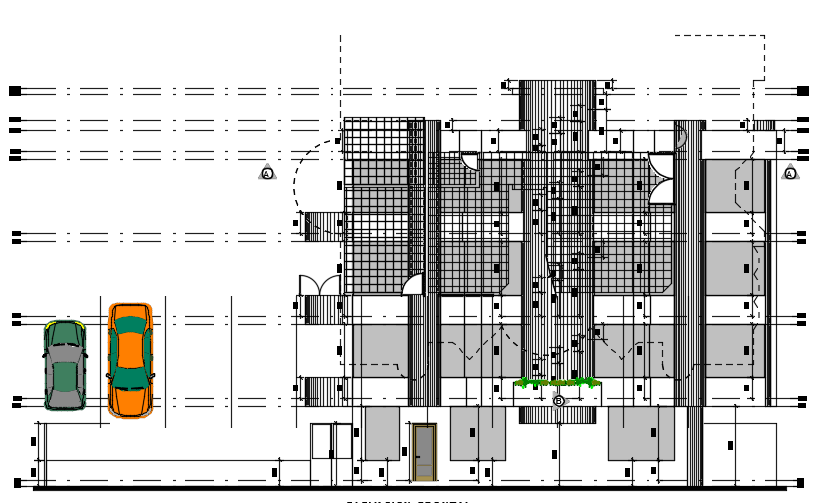

An elevation view of the 16x12m hotel building

An elevation view of the 16x12m hotel building is given in this file. The height of the hotel building is 14m. This is a G+ 3 hotel building. The reception hall, restaurant, kitchen, store room, internet area, lavanderia, transformer, waiting hall, gent’s toilet, ladies toilet, and workers toilets are available in the ground floor. On the other floor, rooms with attached bathrooms are available. For more details download the AutoCAD DWG drawing file from our cadbull website.
