18x12m warehouse building column and foundation section drawings

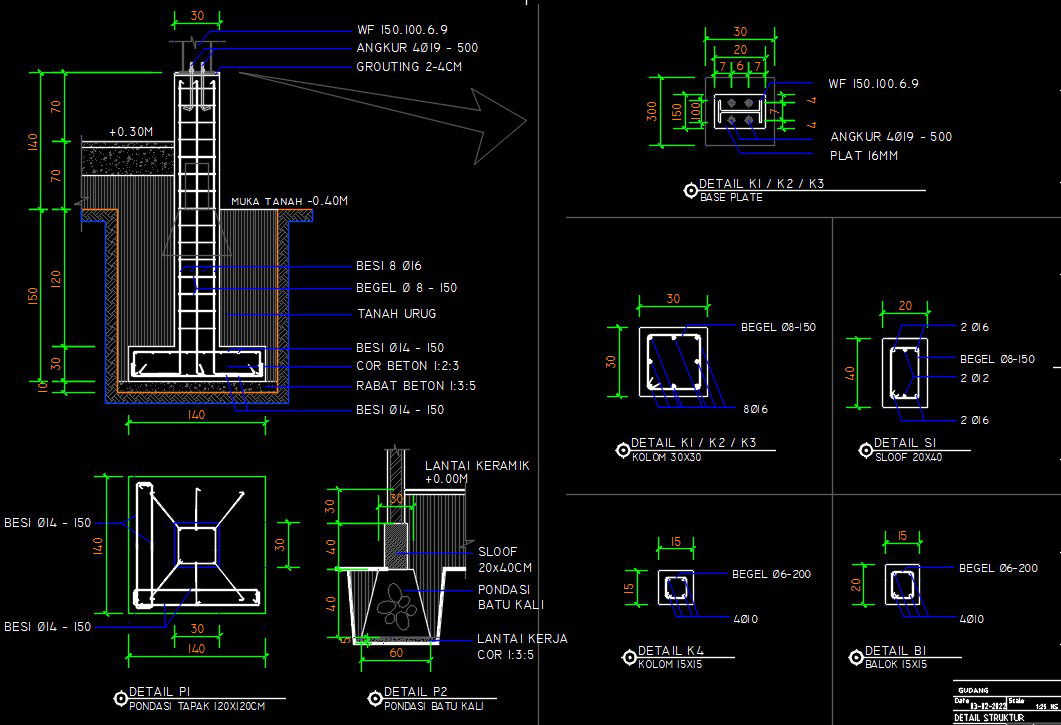

18x12m warehouse building column and foundation section drawings are given in this file. Here, the detailed of foundation and columns are given. The cross sections of the columns are 30x30cm, 20x40cm, 15x15cm, and 15x20cm. The length and breadth of the foundation are 140cm and 140cm respectively. Reinforcement details are provided to the column and foundations. For more details download the AutoCAD drawing file from our cabull website.
