12x9m house building column cum reinforcement construction drawing

Description

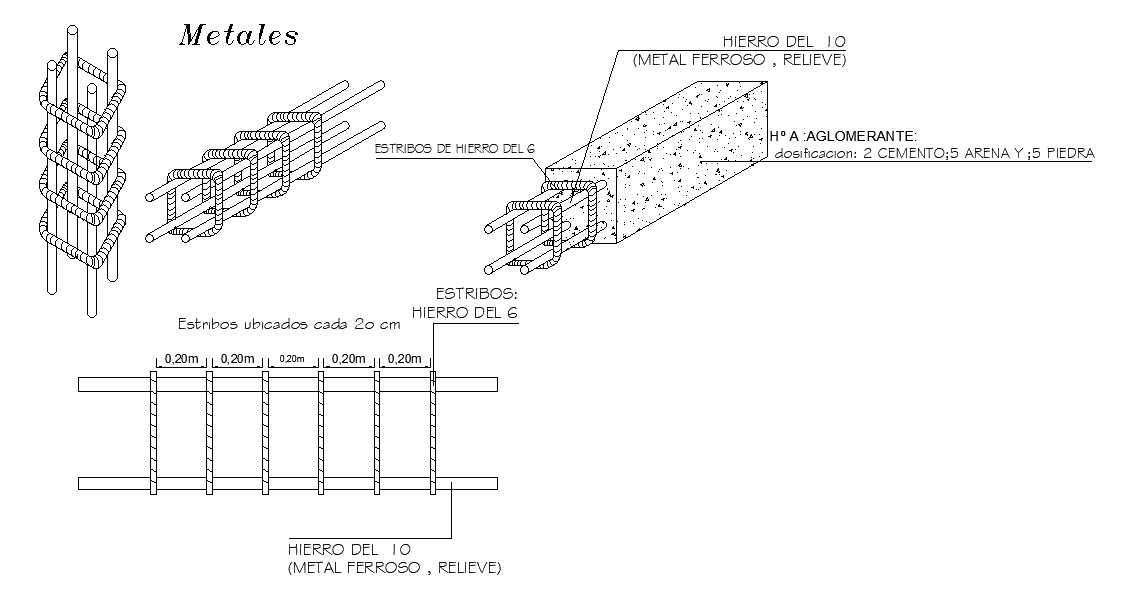

12x9m house building column cum reinforcement construction drawing is given. 6mm diameter stirrups are used. The stirrups are given for each 20cm. For more details download the AutoCAD drawing file from our cadbull website

File Type: DWG File ID: 192856
