A section 2 to 2 of the door drawing is given in this model

Description

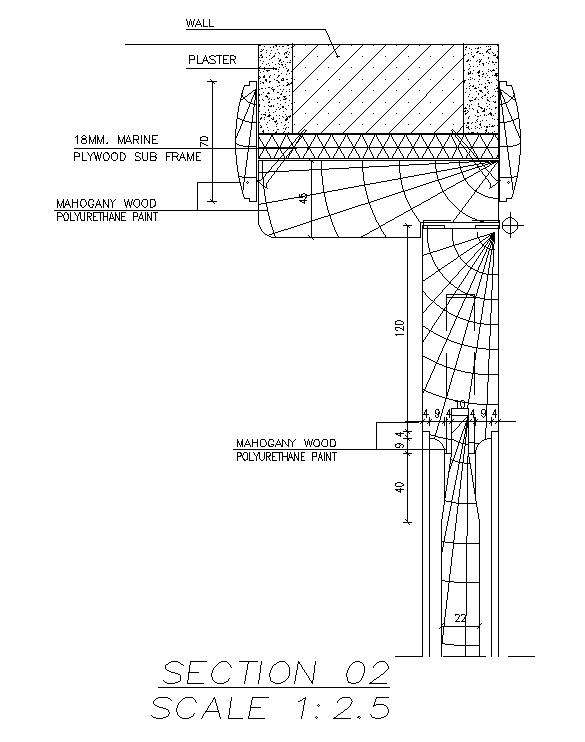

A section 2 to 2 of the door drawing is given in this model. Plaster is done at the right side of the door. 18mm marine plywood sub frame is given. Thank you for downloading the AutoCAD drawing file in advance and other CAD program files from our website.

File Type: DWG File ID: 192984
