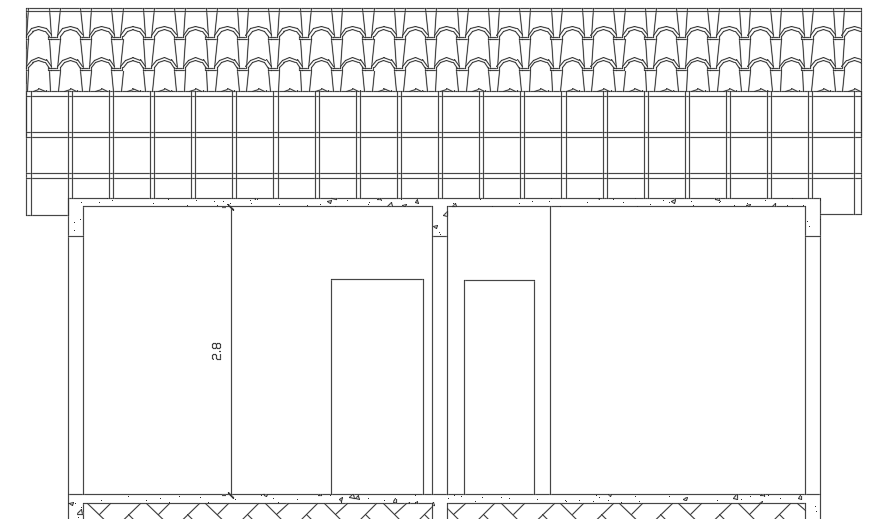

The left side section view of the 16x7m house building

The left side section view of the 16x7m house building is given in this file. The height of the building is 2.8m upto roof slab. This is a single story house building. The length and breadth of the site area is 25m and 10m respectively. The living room, kitchen, garden, storeroom, dining, master bedroom, kid’s room, verandah, and common bathrooms are available. For more details download the AutoCAD drawing model from our website.
