30x30cm and 35x35cm beam cross section detail drawings


Description

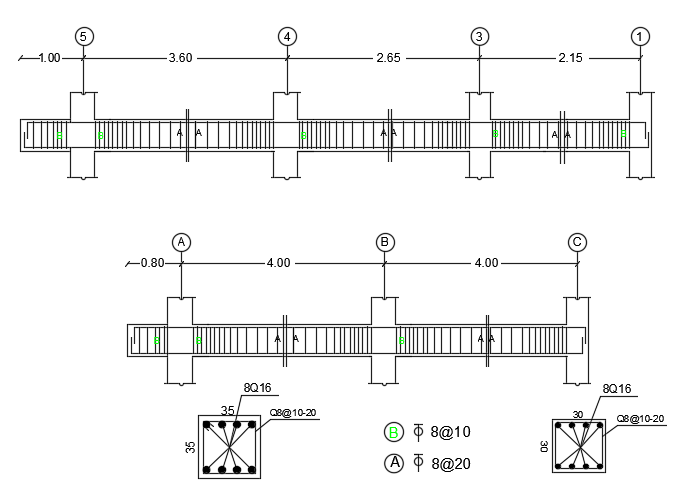

30x30cm and 35x35cm beam cross section detail drawings are given in this file. The longitudinal section view of the beam is given. 4 numbers of 16mm diameter rods are provided at the top. 4 numbers of 16mm diameter rods are provided at the bottom. For more details download the AutoCAD drawing model from our website.




File Type: DWG File ID: 193145
