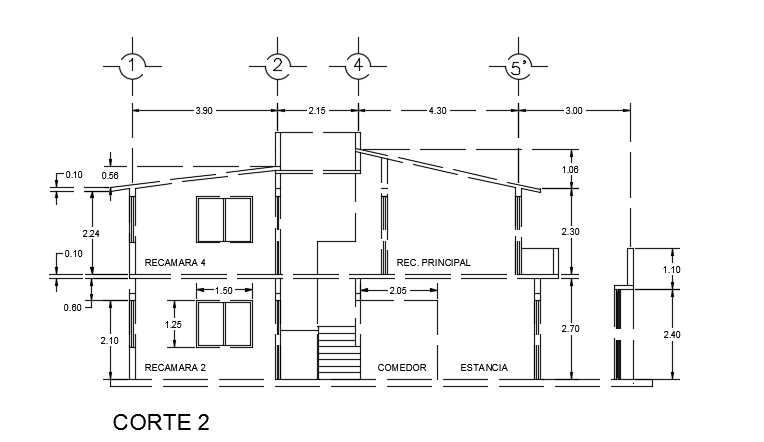

The left side section view of the10x6m architecture house building


Description

The left side section view of the10x6m architecture house building 2D drawing is given in this file. This is G+ 1 house building with the height of 6.38m. On this ground floor, 2 bedrooms are available. The living room, dining area, kitchen, master bedroom, kid’s room, and common bathrooms are available. On this first floor, 3 bedrooms are available. The living room, , master bedroom, kid’s room, guest room, terrace, and common bathrooms are available. For more details download the AutoCAD drawing file from our website.




File Type: DWG File ID: 193709

Uploaded by:


Meera
India
