24x12m Office Cum House Front Section View AutoCAD 2D Drawing

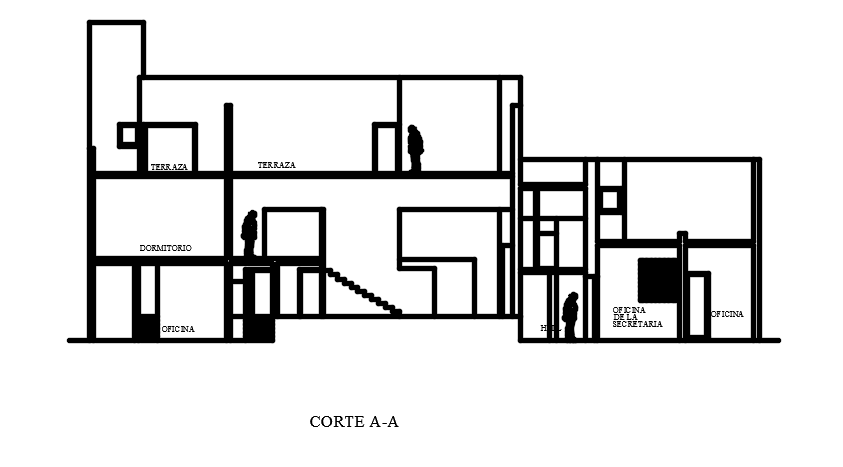

This AutoCAD 2D drawing presents the front section view of a 24x12 meter office cum residential building, designed for mixed use planning and architectural coordination. The sectional drawing clearly illustrates vertical space distribution across multiple floors, showing room heights, floor levels, stair connections, and functional zoning. On the ground floor, spaces such as garage, living room, office room, secretary office, kitchen, dining area, and library are shown in section, helping to understand circulation and spatial relationships. Structural walls, slabs, and openings are clearly defined for accurate interpretation.

The first floor section includes a master bedroom with vestidor, additional bedroom, office area, and common bathrooms, while the second floor section shows service room, laundry area, patio service space, and common bathrooms. This sectional view is useful for understanding vertical planning, building height, and internal connectivity in office cum residential buildings. The DWG file is suitable for architects, civil engineers, planners, builders, and CAD professionals working on mixed use developments. Clean 2D drafting allows easy scaling, editing, and integration into AutoCAD, 3D Max, Revit, and Google SketchUp workflows. Access through cadbull.com enables professionals to use accurate section drawings for design reference, approvals, and construction planning.
