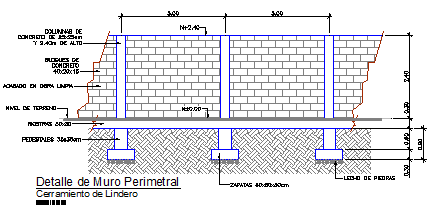

Perimeter Boundary Wall Section Plan With Column Footing Detail

This drawing presents a perimeter wall section plan with column footing detail showing the structural arrangement used for boundary wall construction. The section illustrates masonry wall layers supported by reinforced concrete columns and footing bases that provide stability along the perimeter boundary. The perimeter wall section plan with column footing detail highlights column spacing approximately 3.00 meters between structural supports, masonry block wall construction, and reinforced footing placement embedded within the ground.
