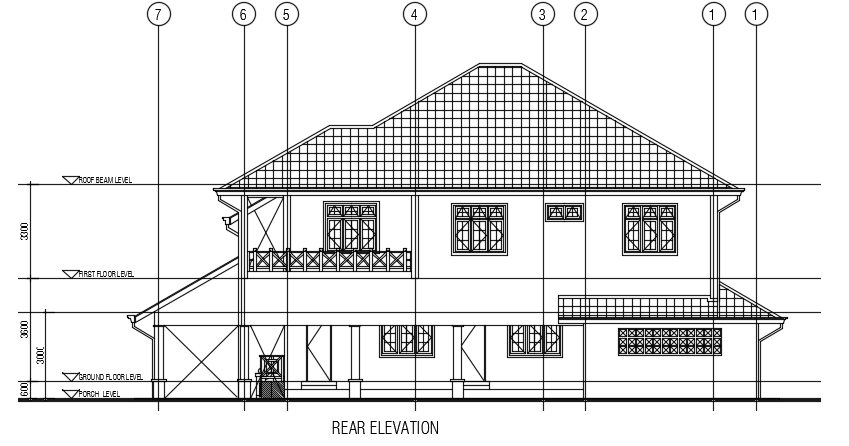

The rear elevation view of the 21x22m house building


Description

The rear elevation view of the 21x22m house building is given in this file. The height of the house building up to roof beam level is 7.5m. This is G+ 1 bungalow building. Porch, terrace, foyer, living room, dining area, guest room with the attached toilet & dressing area, dry kitchen, wet kitchen, store room, cat room, and staircase are available on the first floor. On this first floor, the master bedroom with attached toilet & closet, balcony, two kid’s bedroom with attached toilet, hall, family area, guest room with attached toilet, and living rooms are available. For more details download the AutoCAD drawing file from our website.




File Type: DWG File ID: 194371
