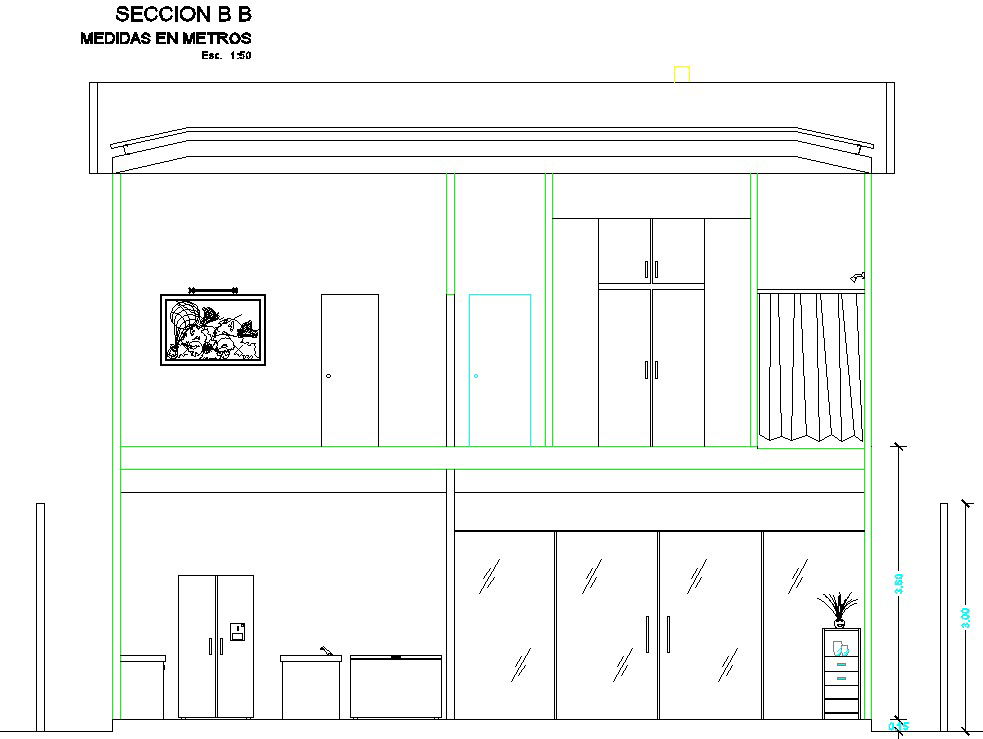

The front side section view of the 8x22m house building


Description

The front side section view of the 8x22m house building is given in this file. The car parking, living room, kitchen, dining area, master bedroom with the attached toilet, computer area, and gym is available on this ground floor. On this first floor, the master bedroom with the attached toilet, two guest room with the attached toilet, two kid’s room with the attached toilet, and living rooms are available. For more details download the AutoCAD drawing file from our website.




File Type: DWG File ID: 194413

Uploaded by:


Pavithra
India
