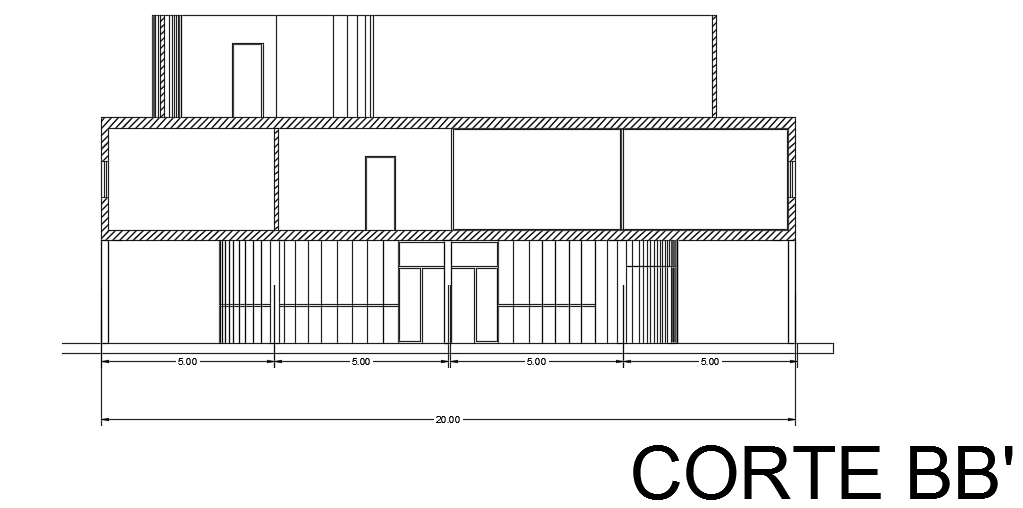

The front cut section view of the20x20m villa building is given in this file


Description

The front cut section view of the20x20m villa building is given in this file. This is two story house building. On this ground floor, the living room, kitchen, car parking, master bedroom, kid’s room, guest room, and common bathrooms are available. On this first floor, the living room, master bedroom with the attached toilet, kid’s room with the attached toilet, guest room with the attached toilet, and common bathrooms are available. For more details download the AutoCAD drawing file from our cadbull website.




File Type: DWG File ID: 194718

Uploaded by:


Meera
India
