Hydraulic Installations Section Plan View Detail Design Drawing

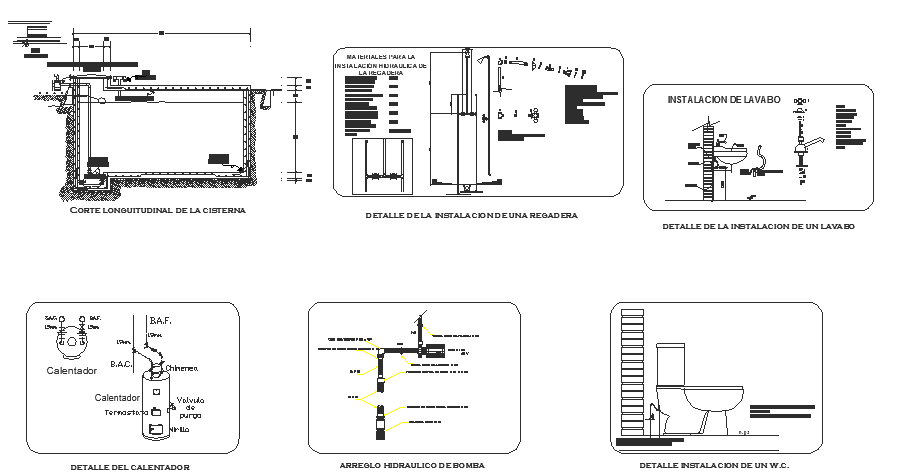

Hydraulic installations detail design drawing showing sectional, plan, and elevation views of hydraulic systems with element specifications, joinery details, and dimensional information. The drawing illustrates the layout of hydraulic pipelines, valves, pumps, tanks, and control units arranged across multiple sections of the building. The plan and section views represent the routing of hydraulic lines, connection points, fittings, and support structures required for proper system functioning.
