Concrete Pavement Expansion Joint Detailed With Sand Layers.

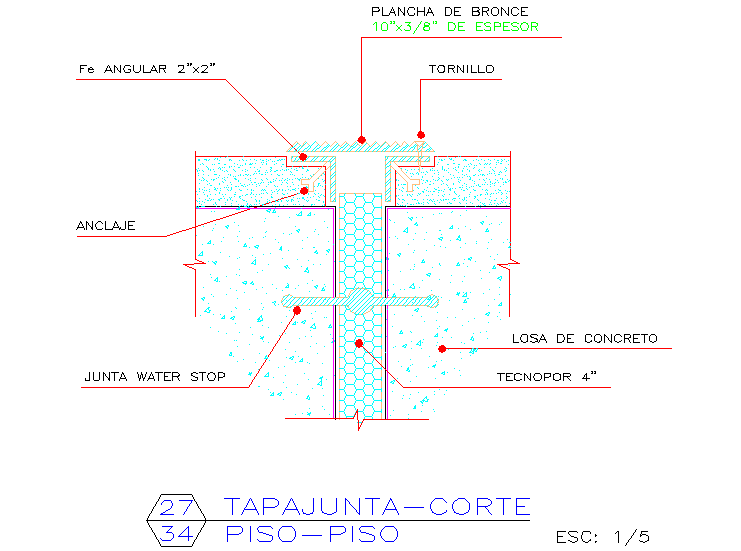

Concrete pavement expansion joint detail drawing presents the structural arrangement of joint construction used between adjacent concrete slabs in pavement systems. This AutoCAD files drawing illustrates the sectional layout of the expansion joint, including concrete slab edges, joint filler material, anchorage elements, and supporting sand or base layers. The detail shows how the expansion joint is installed between pavement slabs to allow controlled movement caused by temperature changes and structural expansion. Components such as metal angles, anchoring bolts, joint filler material, and concrete slab reinforcement are represented to explain the construction of the pavement joint system.
