Metallic Roof CAD Detail with Elevations, Design Plan, and Structural

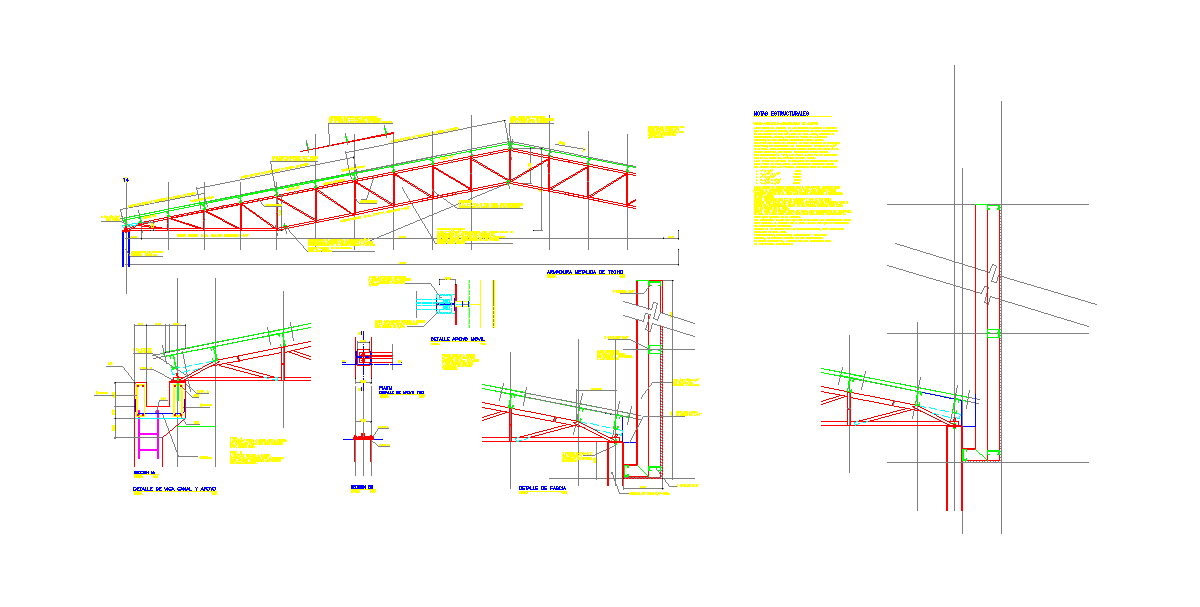

This AutoCAD DWG file provides detailed information on a metallic roof design, including front and side elevations and a detailed plan. The drawing illustrates the structure and layout of the roof, which is made from metal pieces or tiles. It includes precise measurements for the roof panels, support beams, and mounting points, ensuring a robust and durable roofing system. The CAD file is ideal for architects, civil engineers, and builders working on commercial, residential, or industrial projects. It provides clear dimensions, material specifications, and connection details for efficient construction and installation.
