Fire Hydrant Chamber Detail with Valve Box Plan Section Layout

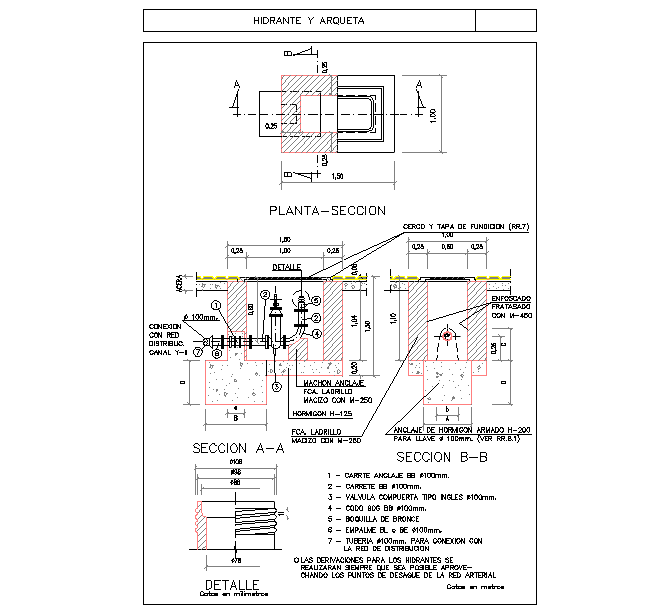

The hydrant chamber CAD detail also includes construction elements such as reinforced concrete chamber walls, foundation base, and access cover used for maintenance operations. The drawing indicates the installation of pipe fittings, elbow connections, and valve components required for hydrant operation. Structural components such as concrete support blocks and chamber lining are included to ensure stability and protection of the hydrant system. These technical details help civil engineers, architects, and infrastructure planners understand the correct installation method for underground hydrant chambers.
