Elevated Water Tank CAD DWG with Connections and Structural Details

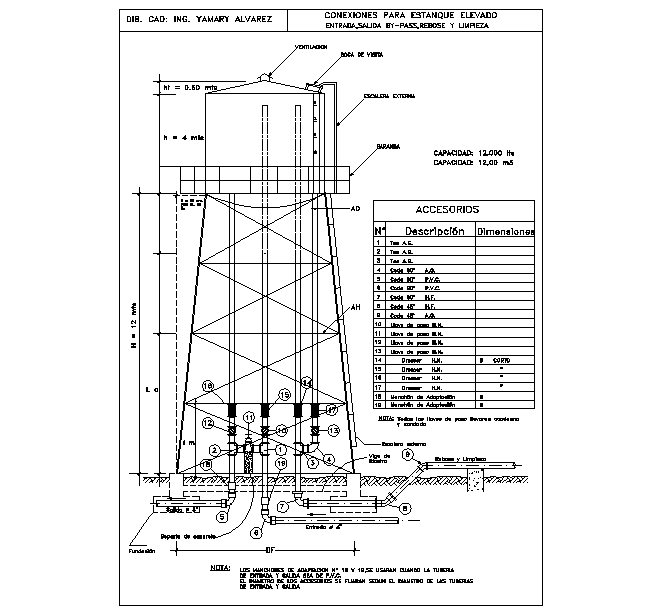

This detailed Elevated Water Tank CAD DWG file is ideal for architects, civil engineers, and construction professionals. The drawing provides a precise elevation and connection details for a 12,000-liter capacity water tank, including inlet, outlet, bypass, overflow, and cleaning connections. Each component — from support structure, piping, and foundation to valves and access hatches — is fully annotated with dimensions and specifications. The CAD file also includes a comprehensive table of accessories and notes for proper installation, structural stability, and maintenance, ensuring safe and efficient water storage for residential, commercial, or industrial applications.
