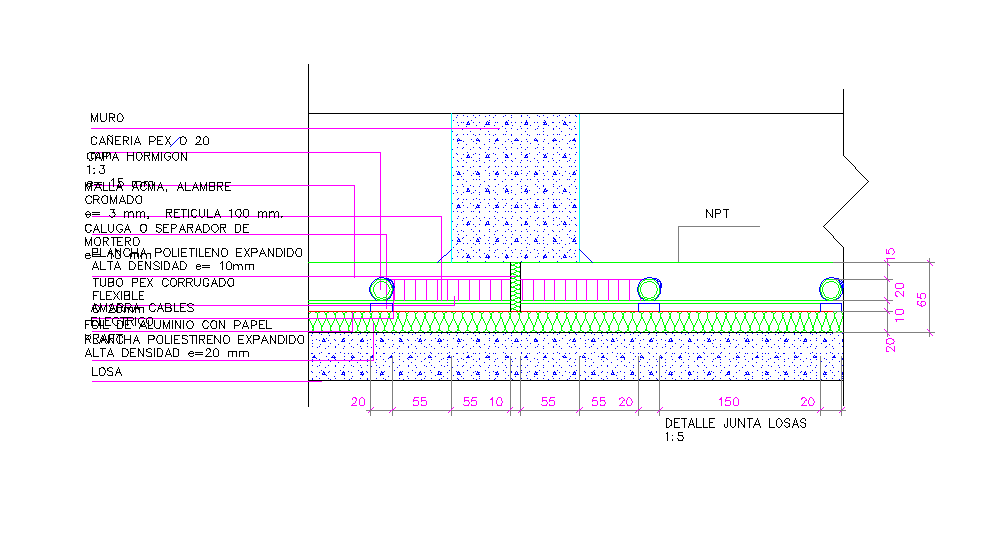

Floor Detail CAD DWG with Section Views, Layers and Dimensions

This Floor Detail CAD DWG file is ideal for architects, civil engineers, and construction professionals. The drawing provides comprehensive floor construction details, including sectional views, reinforcement placement, slab structure, finishing layers, and material specifications. Each component — from base layers to finished floor surfaces, insulation, screed, and structural slabs — is clearly annotated with dimensions and construction notes, enabling accurate planning and execution. This CAD file highlights how floor systems integrate with wall bases, drainage slots, and support elements to ensure long-lasting stability and performance in residential, commercial, or industrial buildings.
