Radiating Slab CAD DWG with Reinforcement, Insulation and Soil Layers

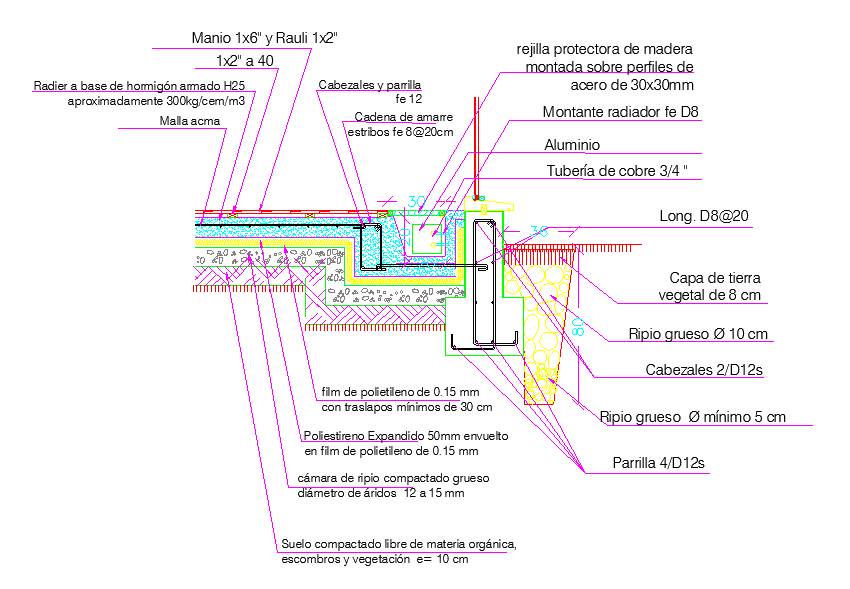

This detailed Radiating Slab CAD DWG file is ideal for architects, civil engineers, and builders. The drawing provides sectional views of a radiating slab, including concrete base, reinforcement bars, polystyrene insulation, polyethylene film, and compacted gravel layers. Each component — from structural steel, aluminum tubing, copper pipes, and protective grilles to soil preparation, ripio layers, and vegetal cover — is clearly annotated with dimensions and material specifications. This CAD file ensures accurate planning, proper load distribution, and integration of radiant heating or cooling systems in residential, commercial, or institutional buildings.
