Facade Section at Constructive Joint – Detailed AutoCAD Drawing

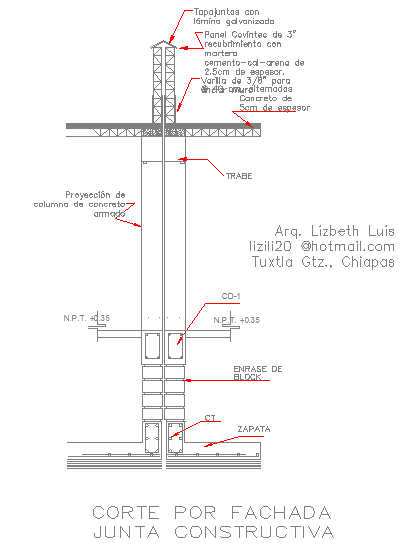

This AutoCAD DWG file provides an in-depth facade section at a constructive joint, offering comprehensive details for building professionals. It includes clear measurements for concrete column projections, beam reinforcement, and block insertion at the joint. The drawing also highlights the footing and precise structural details required for construction. With accurate architectural specifications, this file is ideal for architects, civil engineers, and contractors looking to understand and implement the joint details in their building projects.
