Inverted Roof And Wall Junction Construction Section Detail.

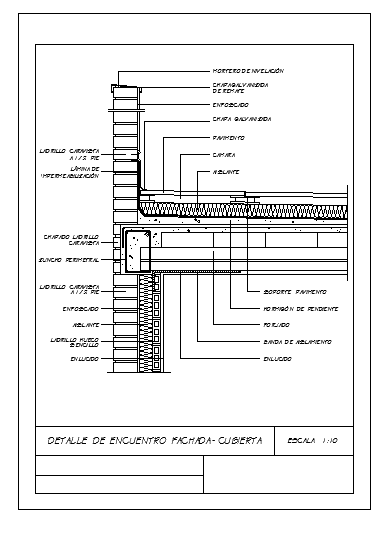

This drawing shows the inverted roof construction detail at the wall junction, including waterproof membrane, insulation layer, roof pavement support, drainage slope, and structural slab assembly. The section illustrates wall connection, protective layers, vapor barrier placement, and roof build-up system used for proper water drainage and thermal insulation. It helps architects and engineers understand roof-to-wall integration, waterproofing strategy, and construction detailing used in modern flat roof structural systems.
