Elevated Water Tank Structurals Plan 5.2 m by 2.78 m Layout.

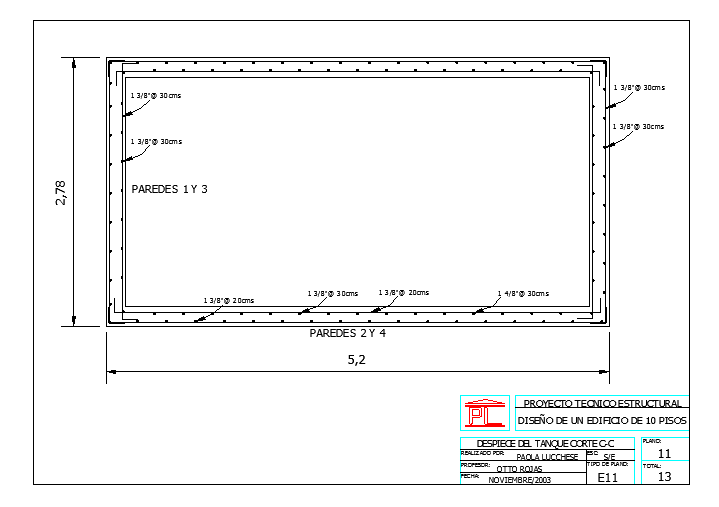

This drawing presents an elevated water tank structural plan with reinforced concrete wall detailing prepared in AutoCAD files for water storage structure construction. The layout shows a rectangular tank plan measuring 5.2 m in length and 2.78 m in width, designed for structural water storage systems. The drawing clearly identifies the reinforced concrete wall arrangement for tank walls labeled as walls 1 and 3 and walls 2 and 4. Reinforcement bars of 3 by 8-inch diameter spaced at 30 cm intervals are shown along the tank perimeter to strengthen the structural walls and ensure the durability of the water storage structure.
