Fire Hydrant Cabinet Detail with 600x600 Panel and 1200 Height CAD

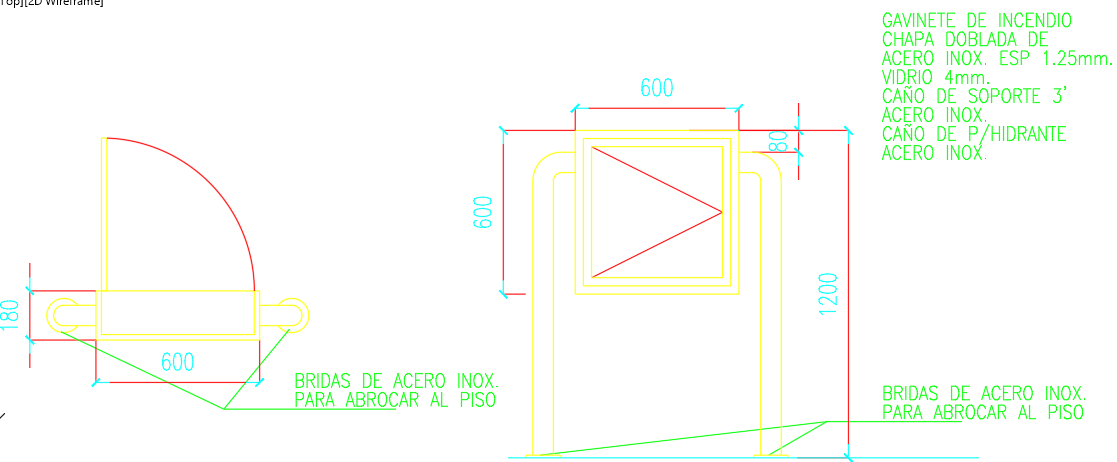

This drawing presents the detailed fire hydrant cabinet layout prepared for fire safety and building service design. The hydrant cabinet includes a front elevation and side view showing the cabinet structure, pipe support system, and mounting arrangement. The cabinet panel measures 600 by 600 with a visible glass section and an internal access area. The full cabinet height is 1200, with a structural support frame connected to the floor using stainless steel base flanges. The drawing also shows the cabinet depth and structural arrangement required for wall or floor-mounted installation in fire protection systems.
