Family Housing Architectural CAD Drawing with Plans and Elevations

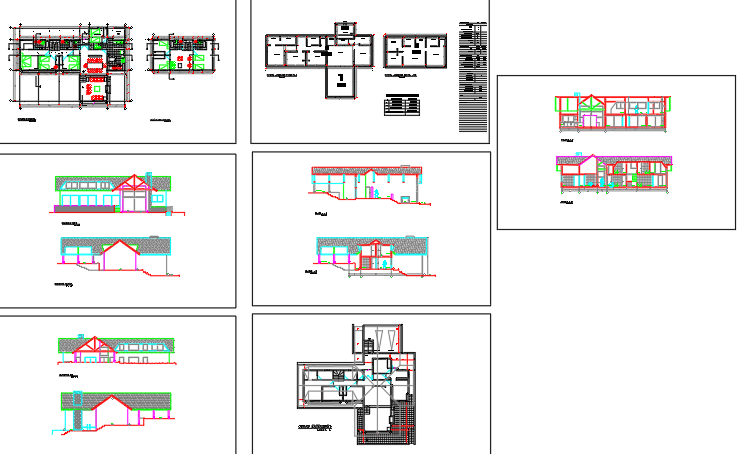

This AutoCAD family housing architectural CAD drawing presents a detailed residential design layout showing multiple floor plans, elevations, and sectional views of a family housing project. The drawing includes architectural layouts that illustrate room arrangements, circulation spaces, staircases, and interior partitions that form the structural organization of the house. Elevation views show the exterior appearance of the building, including roof structure, windows, doors, and façade elements, which help architects, civil engineers, interior designers, and builders understand the architectural composition of the residence. The sectional drawings provide insight into vertical building relationships such as floor heights, roof slopes, and interior structural alignment.
