Column Foundation Block Detail With Base Plate And Wall Connection

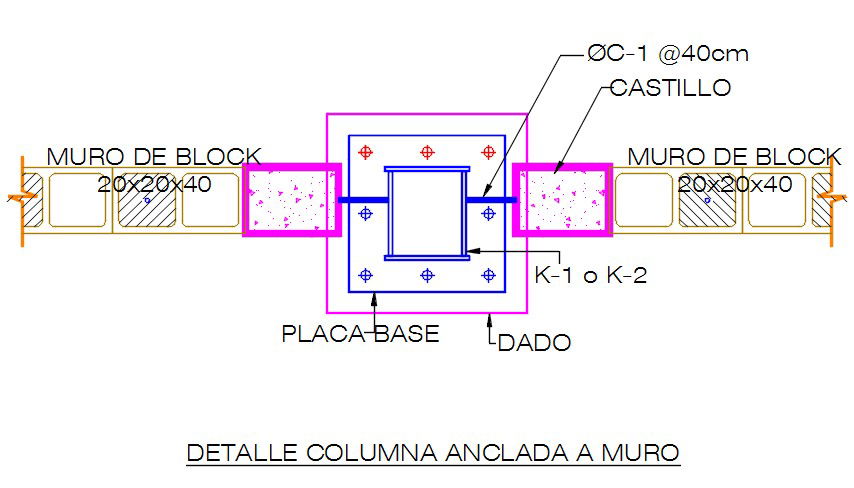

This AutoCAD drawing presents a detailed column foundation block connection used for structural wall support in building construction. The drawing clearly illustrates the column base plate anchored to a reinforced concrete foundation block connected with a continuous masonry block wall system. Structural components such as the column base plate, anchor bolts, foundation dado block, and reinforced concrete column support are shown in the drawing. The block wall dimension is indicated as 20 by 20 by 40 block masonry units, which form the wall structure on both sides of the column foundation. The detail also shows the reinforced column support labeled as castillo with structural reinforcement spacing indicated as OC 1 at 40 cm which helps provide stability between the column and the wall structure.
