Tubular Hand Rail and Glass DWG Plan Section AutoCAD Drawing

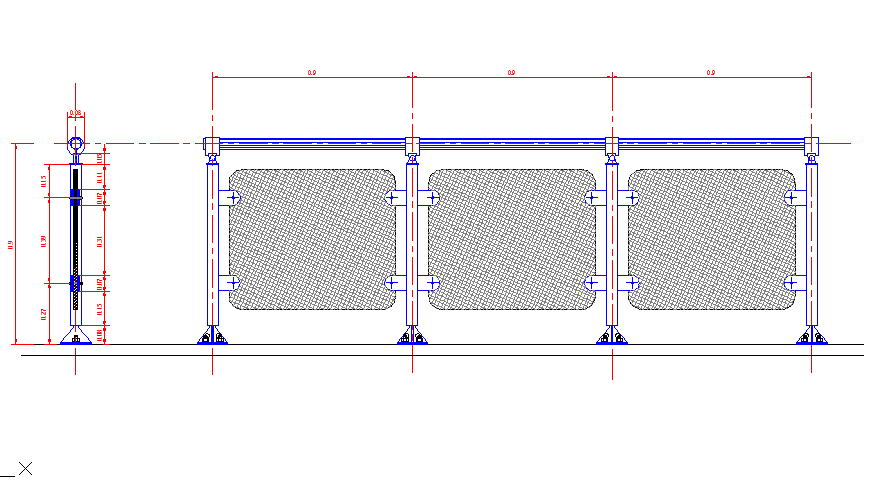

This AutoCAD DWG file provides detailed drawings of a tubular handrail with glass panels. The elevation shows a total height of 1.10 m with tubular posts spaced at 0.90 m intervals. Each glass panel is supported securely with clamps, and the rail system is shown with precise dimensions for height, post width, and panel thickness. The drawing includes plan and section views to illustrate the alignment, spacing, and installation of the handrail and glass panels. Measurements for base plate dimensions and rail connections are clearly marked, ensuring accurate fabrication and installation. This DWG file allows architects, interior designers, and engineers to reference precise technical details for project planning, site verification, and construction layout. It provides a complete representation of the railing system, supporting proper structural alignment and aesthetic detailing.
