Canopy and R.C.C Balcony DWG Section Plan with Reinforcement AutoCAD

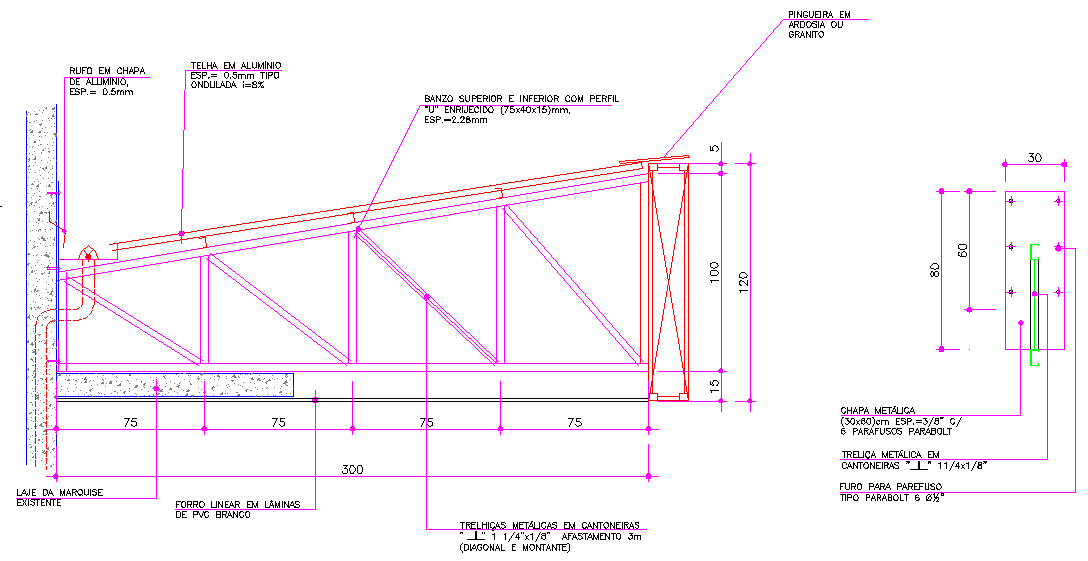

This AutoCAD DWG file provides detailed sectional and plan drawings of a canopy and R.C.C balcony. The drawing shows canopy slope, 300 cm length with 75 cm spacing between trusses, and reinforcement bar sizes for accurate construction. Details include metal trusses in cantoneiras, metal sheets, PVC lining, and anchoring to the existing balcony slab. Sectional views illustrate bar placement, diagonal and vertical members, and structural alignment. Measurements for base, height, and reinforcement spacing are clearly marked for precise fabrication and installation. The plan and section also show canopy slope, metal profile dimensions, and spacing for screws and bolt connections. This DWG ensures clarity in structural detailing, supporting engineers, architects, and designers in planning, fabrication, and site verification of canopies and balcony structures using AutoCAD and CAD tools.
