Heliport Design Study Plan Elevation And Electrical Layout DWG

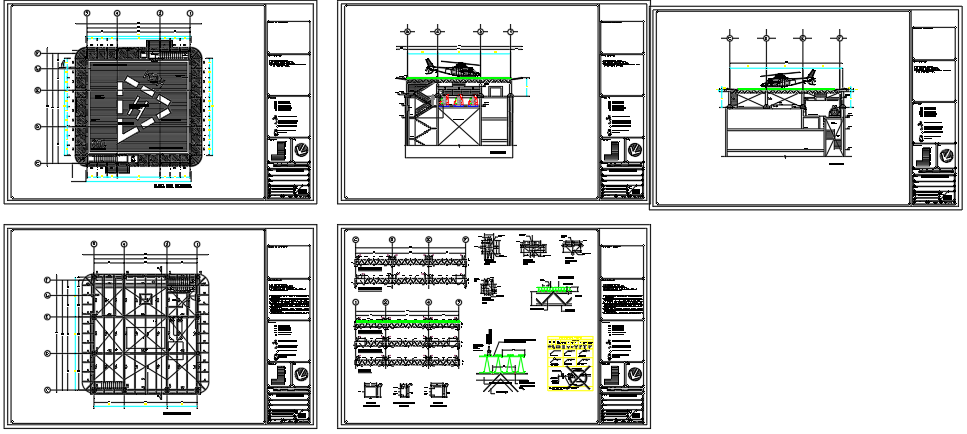

The Heliport Design Study Plan Elevation and Electrical Layout DWG presents a comprehensive AutoCAD drawing set developed for aviation infrastructure planning and heliport facility development. This detailed study includes a clear presentation plan layout of the heliport landing platform showing the marked landing zone, structural frame arrangement, and overall heliport deck configuration. The drawing also includes top plan views, structural framing layout, and dimensional references that help professionals understand the organization of the heliport platform and supporting framework. In addition, the AutoCAD file provides side elevation views of the heliport platform with helicopter placement, highlighting the structural support system beneath the landing surface, along with beam and truss arrangements used to stabilize the structure. These elevations illustrate the relationship between the landing deck, structural supports, and surrounding infrastructure elements.
