Roof Water Concrete Design with Reinforcement in AutoCAD DWG

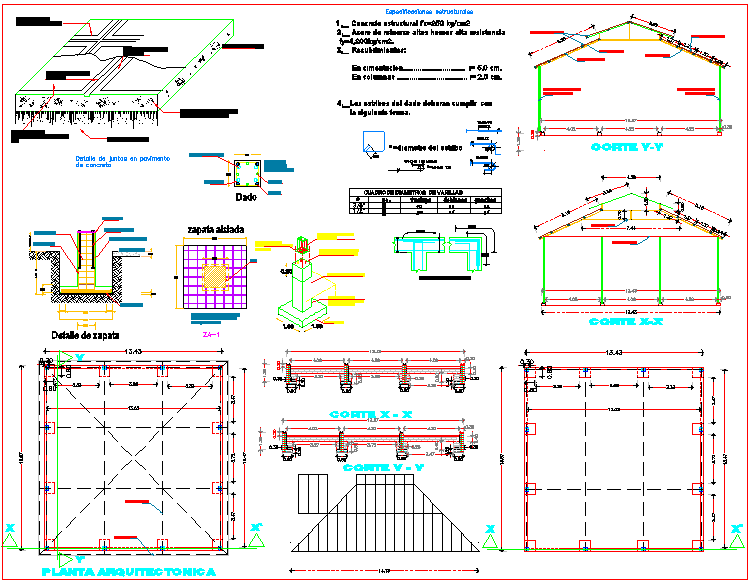

This AutoCAD DWG file provides a detailed roof water design with structural concrete specifications. The layout includes concrete strength (f'c = 250 kg/cm2), high-strength reinforcement steel (Fy = 4200 kg/cm2), and coating details for the foundation (r = 5.0 cm) and columns (r = 2.0 cm). Additionally, the stirrup requirements are outlined. Ideal for architects, engineers, and builders, the file is a valuable resource for construction and design.
