Residential House Plan With Elevation Section And Structural Layout

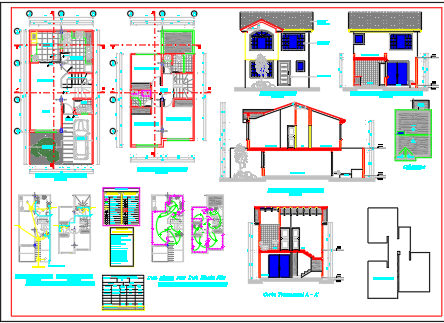

This residential house DWG file presents a complete architectural and structural layout including ground and first floor plans, building elevations, and cross sections. The drawing shows room arrangements, staircases, doors, windows, and circulation paths for organized residential design. Elevation views display front, rear, and side facades with roof slope, external openings, and architectural features. Section views illustrate floor-to-floor heights, wall composition, and structural alignment. Additional diagrams include stair details, foundation layout, and utility planning. This residential house plan helps architects, engineers, and interior designers understand housing type details, structural coordination, and spatial organization for accurate construction and design documentation.
