Isolated Footing Detail Plan Section And Reinforcement Drawing

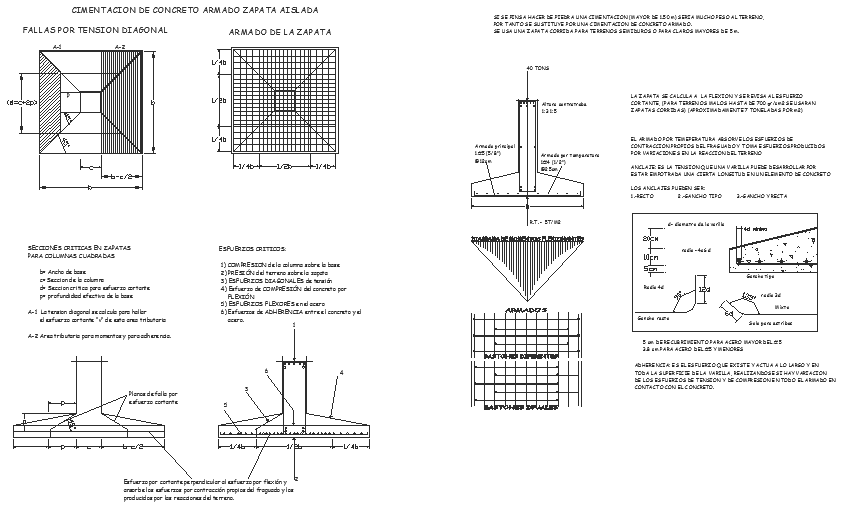

This isolated footing detail plan section and reinforcement drawing presents a complete structural foundation design with precise dimensions and construction detailing. The drawing includes a footing plan, sectional views, reinforcement layout, and load distribution elements designed for safe structural support. It highlights the isolated footing architecture drawing with clear detailing of base size, depth, column connection, and reinforcement mesh arrangement for accurate execution.
