Iron Opening Connection Beton Block Wall Detail 2D CAD Drawing

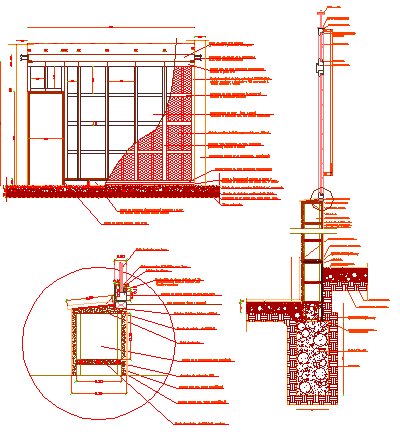

This AutoCAD DWG file presents an iron opening connection between a concrete block wall detail with comprehensive 2D design and descriptive annotations. The drawing includes detailed sectional views showing iron frame installation within a concrete block wall construction with accurate dimensions and material layers. It illustrates connection methods, anchoring systems, reinforcement placement, and joint detailing required for structural stability. The layout highlights wall composition, including plaster finish, block arrangement, and support elements, ensuring proper integration of iron openings.
