Machine Plate Housing Measurement Detail 2D CAD Drawing Design

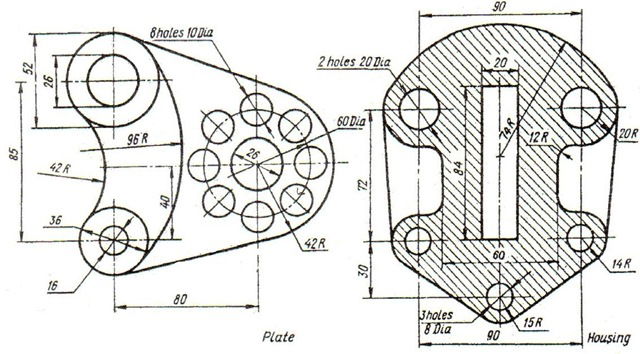

This AutoCAD DWG file presents machine exact measurements with detailed 2D drawing of plate and housing components. The drawing includes precise dimensional annotations such as diameters radii hole spacing and overall geometry required for accurate machining and fabrication. It showcases multiple views, including plate layout with circular hole patterns and housing section with internal cut profiles and mounting holes. The design highlights technical details like center distances, edge radii, and symmetrical alignment, ensuring proper assembly and functionality.
