Pump Block Drawing Mechanical Plan Elevation AutoCAD Designs

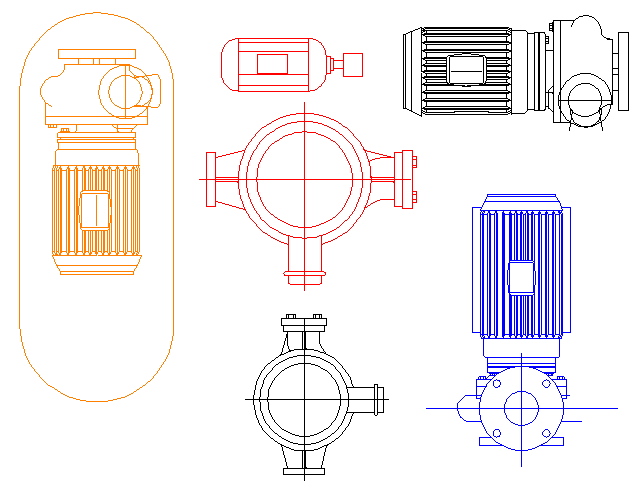

This pump block drawing provides a detailed AutoCAD file featuring 2D mechanical elements, including plan and elevation views of pump systems. The drawing is ideal for mechanical engineers, designers, and technical professionals working on machinery and industrial layouts. It includes accurately drafted pump blocks with clear representations of motor housing, inlet, outlet connections, and structural components, ensuring proper understanding of mechanical design. The plan and elevation views allow easy interpretation of dimensions, alignment, and positioning, making it suitable for equipment layout and engineering documentation.
