Hostel Building CAD Drawing with Floor Plans, Elevations, and Sections

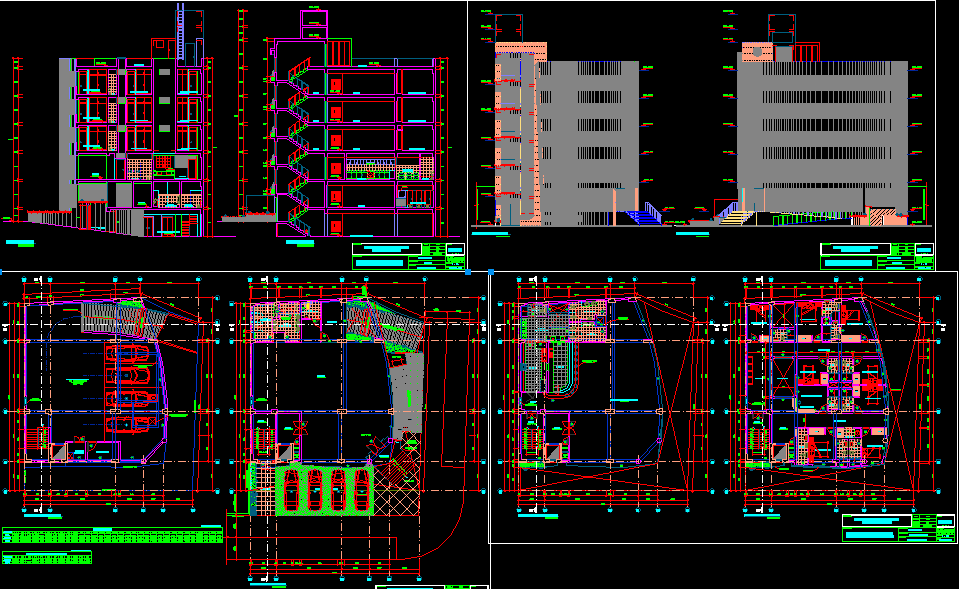

This Hostel Building CAD drawing file features comprehensive 2D architectural plans, elevations, and sectional layouts, designed for precise and professional execution. The AutoCAD DWG file includes all essential building components such as floor layouts, staircase sections, parking zones, and façade elevations. Each element is meticulously labeled and dimensioned, ensuring clarity for architects, civil engineers, and structural designers. The file provides a detailed visualization of spatial distribution, circulation design, and construction elements, perfect for academic, residential, or institutional hostel projects.

The AutoCAD DWG file illustrates ground and upper floor layouts with accurate scale, wall sections, and structural detailing. It also includes interior partitions, ventilation systems, and service areas for practical application. These designs are ideal for planning modern hostel buildings that balance functionality with space efficiency. Explore this Hostel Building CAD Drawing on cadbull.com to access high-quality architectural DWG resources, streamline your workflow, and save drafting time on multi-storey residential projects.
