Electric Installation System Plan With House Layout AutoCAD DWG

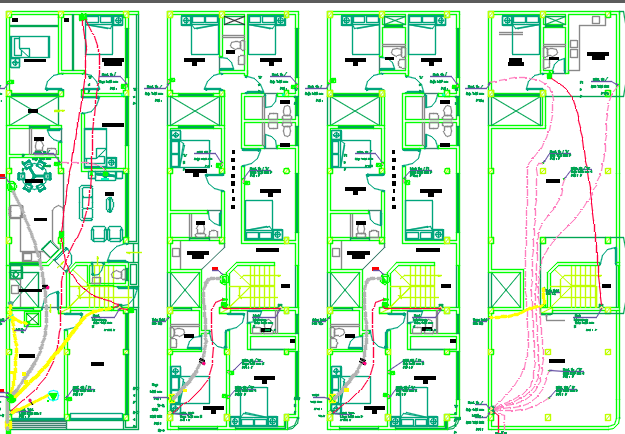

This electric installation system plan with house layout presents a detailed AutoCAD DWG drawing designed for residential electrical planning and design. The file contains a complete electrical layout plan, showing the placement of wiring, switches, sockets, lighting points, and distribution panels to ensure a safe and efficient power supply throughout the house. The drawing also includes the architectural layout of the house, with clear room demarcations, furniture arrangements, and circulation paths, allowing designers to coordinate electrical systems with interior planning. This combination of architectural and electrical detail provides a comprehensive overview for accurate project execution.
